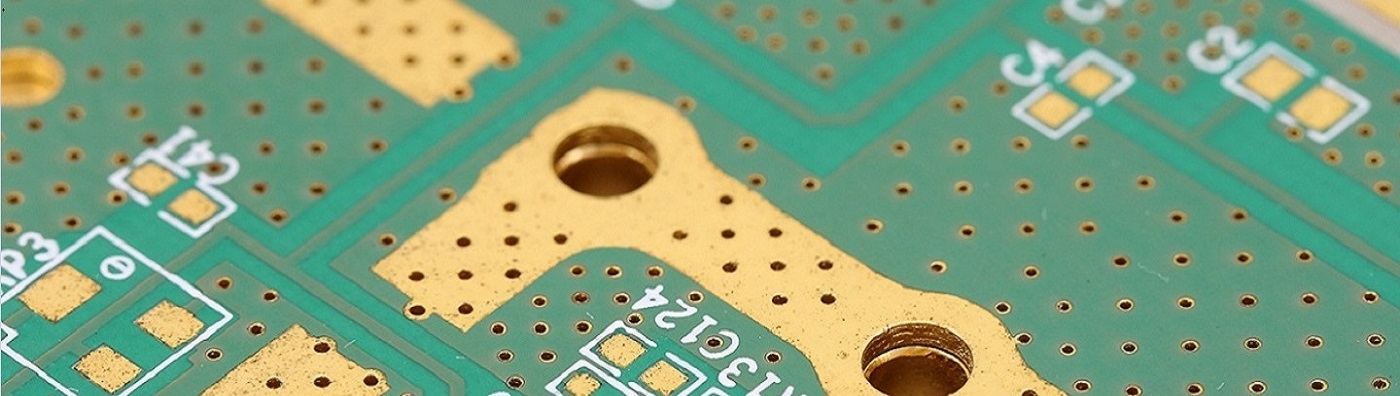

PCB Fabrication

Wizlogix Pte Ltd has a solid network of PCB prototype specialists who lay emphasis on high technology designing, with regular and express production capabilities.

PCB Fabrication Specifications:

  • Rigid, Flex, Rigid-Flex
  • Prototype, NPI, HMLV build
  • Up to 50 Layers
  • Board size 24” x 31” max
  • Board thickness 0.25 ~ 3.20mm
  • Copper Thickness up ⅓ ~ 6oz
  • Aspect Ratio 30:1
  • Type of PCB - FR4, High-Tg FR4, Halogen-Free, High Temp PCB, Aluminium PCB, PI, Telfon, Hybrid
  • Laminates - Roger, Nelco, Arlon, Isola, Sheng Yi, Doosan, ITEQ, Taconic, TUC, Megatron, ThinFlex, Dupont
  • Min. trace width/gap 3/3mils
  • Min. via (mech) 6mils, min. via (laser) 4mils
  • Via plugging/filling (non-conductive, conductive)
  • Via in pad (plated shut), Blind/Buried Via
  • Back-drill depth tolerance 8mil (min)
  • Edge plating (half-hole)
  • HDI up to 4+4+4, ALIVH (Any-Layer)
  • Impedance control up to ± 5%
  • HASL, LF-HASL, ENIG, Immersion Silver/Tin, ENEPIG, OSP/Entek, Hard/Flash/Electrolytic Gold, Soft Bondable Gold, Carbon
  • Soldermask registration 2mils (min)
  • Soldermask green, red, blue, black, purple, orange, yellow
  • Electrical Test (jig/flying-probe), Solderability Test (IR Reflow), Thermal Stress Test (288°C), Micro-Section Analysis, Ionic Contamination Test, Hi-Pot Test, TDR Measurement, SM/SS Peeling Test
  • Country of Manufacturer – Taiwan, Korea, China, Vietnam, Singapore, USA

Unless otherwise directed by your requirements, Wizlogix Pte Ltd manufactures PCB’s according to the following standards:
  • IPC-A-600 Acceptability of Printed Circuit Boards
  • IPC-6012 Qualification and Performance of Specs
  • IPC-A-610 Acceptability of Printed Circuit Board Assembly
  • IPC-J-STD-001E Requirement of Soldered Electronic Assembly



Click here to view the 360° images of our fabricated and assembled boards
